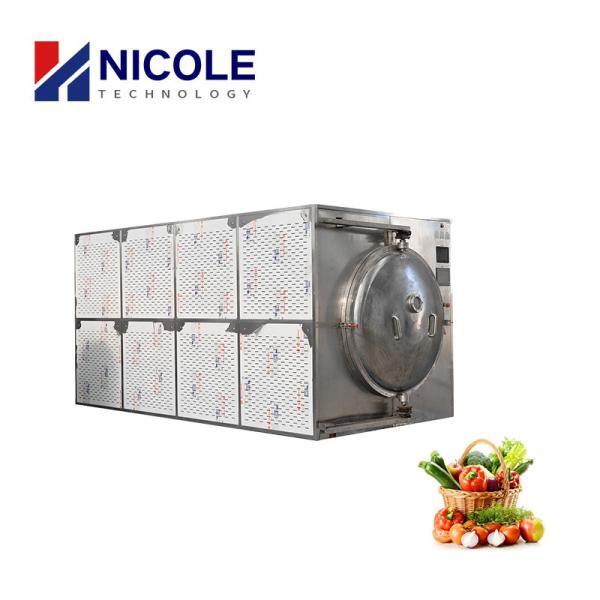

High Quality Large Capacity Microwave Vacuum Fruit Drying Machine
Application Range
Microwave vacuum fruit drying machine is used for dehydration and
drying of high value-added and heat-sensitive agricultural and
sideline products, health products, food, medicinal materials,
fruits and vegetables, chemical raw materials, etc.; for
low-temperature concentration of chemical products, removal of
crystal water, and drying of enzyme preparations etc.; vacuum
extraction of Chinese herbal medicine; suitable for laboratories in
scientific research institutions.
In large-scale industrial production, there are many items that
cannot be dried under high temperature conditions, such as some
medicines, chemicals, nutritional foods, and high-grade Chinese
herbal medicines such as ginseng and deer antler, especially for
the drying of traditional Chinese medicine extracts.
high-efficiency features.
Application in fruit and vegetable dehydration processing
Microwave vacuum drying technology has low processing temperature,
low nutrient loss rate, and high dehydration efficiency, so it can
give full play to its advantages when dehydrating fruits and
vegetables with high moisture content.
In 1979, the citrus powder produced by microwave vacuum technology
on an industrial scale in France for the first time was foamy, easy
to dissolve, and well maintained its natural color, aroma and
taste, and its vitamin retention rate was much higher than that of
spray drying.
The University of California studies the use of microwave vacuum
drying technology to produce dehydrated puffed grapes, which can
well maintain the flavor and color of fresh grapes, and the shape
can not shrink. Because of the low microwave drying temperature and
short drying time, vitamin B1, vitamin B2, and vitamin C can get a
higher retention rate.
The garlic was dried by hot air drying, vacuum drying, freeze
drying, microwave vacuum drying and vacuum drying combined drying.
It was found that the drying time of microwave vacuum drying and
40℃ vacuum drying combined drying method was greatly shortened. The
retention rate of sulfinate is relatively close to freeze-drying,
which can reach 90%. The color difference is very small from that
of vacuum freeze-dried garlic, and even slightly better than
freeze-dried garlic, but the only disadvantage is that the texture
of garlic is not as tight as freeze-dried garlic. loose.
A large number of by-product pumpkin residues obtained from
processing pumpkin juice were dried by microwave vacuum under
different microwave power and pressure conditions.
Using microwave vacuum drying and puffing technology to process
apple chips, the purpose of drying and puffing apple chips can be
achieved within a few minutes at about 40 ℃, which greatly improves
the production capacity. , to realize the rapid, low-temperature,
non-fried puffing processing of apple chips.
The process of drying the clarified banana juice after enzymolysis
with microwave vacuum drying equipment to make instant banana
powder was studied, and it was found that the products after
microwave vacuum drying were better than those dried by hot air.
Technical Specifications
| Models | Microwave Input | Microwave Output | Dehydrated | Sterilization |
| NT-12 | 18kw | 12kw | 12kg/hr | 100-150kg/hr |
| NT-15 | 20kw | 15kw | 15kg/hr | 120-180 kg/hr |
| NT-20 | 26kw | 20kw | 20kg/hr | 180-250 kg/hr |
| NT-30 | 36kw | 30kw | 30kg/hr | 280-350 kg/hr |
| NT-40 | 46kw | 40kw | 40kg/hr | 380-450 kg/hr |
| NT-50 | 58kw | 50kw | 50kg/hr | 480-550 kg/hr |
| NT-60 | 68kw | 60kw | 60kg/hr | 500-600 kg/hr |
| NT-70 | 78kw | 70kw | 70kg/hr | 700-800 kg/hr |
| NT-80 | 90kw | 80kw | 80kg/hr | 800-900 kg/hr |
| NT-100 | 110kw | 100kw | 100kg/hr | 1000-1200kg/hr |
Equipment production steps
Payment terms:
T/T, L/C or other formal import and export payment method
Packing and Shipping:
1. Plastic film as inner packaging
2. Formal export packaging or packaging according to customer
requirements
3. Shipping by sea, land or rail.
Choose the best shipping method according to the actual situation
or customer requirements
FAQ
Q: How long is your production cycle?
A: Usually 7-25 working days, depending on the quantity.
Q: Can you help design the entire process line?
A: Of course, our experienced engineers and technicians can help
you arrange the layout and installation of the entire production
line according to the actual situation such as your workshop
layout.
Q: How to install?
A: Due to the epidemic, we can currently provide online guidance
services by experienced engineers.
Q: How is the payment:
A: T/T, L/C or other formal import and export payment method
Q: How long is your warranty period?
A: One year after commissioning is completed.
Q: Will you help us if we have any problems in future production?
A: It is necessary, you can contact me through mobile phone,
WhatsApp, etc. We are always at your service. We will help resolve
your issue as soon as possible.
