High Efficiency Low Temperature Vacuum Drying Food Freeze Dryer
Machine
Product Description

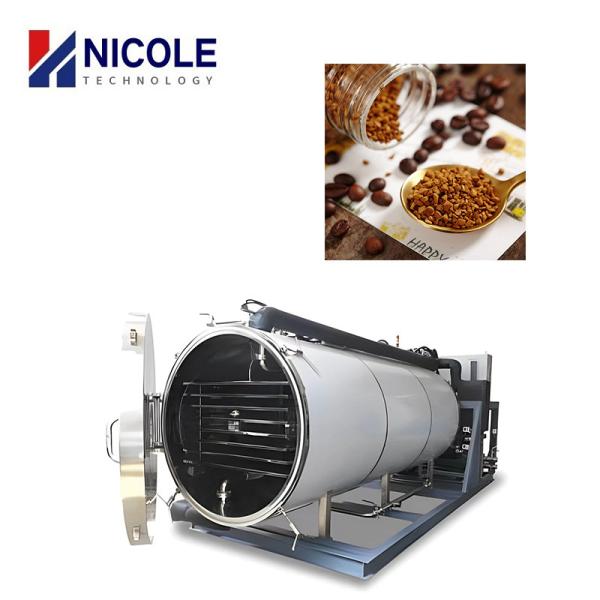

The High Efficiency Low Temperature Vacuum Drying Food Freeze Dryer
Machine is composed of a refrigeration system, a vacuum system, a heating
system, and an electrical instrument control system. Its working
principle is to freeze the item to be dried to below the triple
point temperature, and then directly sublimate the solid water
(ice) in the item into water vapor under vacuum conditions, and
then remove it from the item to make the item dry.
Product Features
The equipment adopts high-efficiency radiation heating, and the
material is heated evenly;
High-efficiency water traps are used to achieve rapid defrosting;
High-efficiency vacuum unit is adopted, and oil-water separation
can be realized;
Parallel centralized refrigeration system is adopted, multi-channel
cooling is provided on demand, the working condition is stable, and
it is beneficial to energy saving;
Artificial intelligence control is adopted, with high control
precision and convenient operation.
Flow Chart
After pre-treatment, the product is sent to the quick-freezing bin
to freeze, then sent to the drying bin for sublimation and
dehydration, and then packed in the post-processing workshop.
Product Application
The vacuum freeze-drying equipment is suitable for freeze-drying of
food, vegetables, fruits, fruit powder, flowers, coffee, plant
extracts, Chinese medicinal materials, Cordyceps sinensis, sea
cucumbers, velvet antler, biological products and chemical
materials.
Technical Specifications
| Model | NT-F5M | NT-F10M | NT-F20M | NT-F30M |
| Control Type | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface |
| Working | Quick freezing | Quick freezing | Quick freezing | Quick freezing |
| Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Drying area (m²) | 5 | 10 | 20 | 30 |
| Loading capacity(kg) | 50 | 100 | 200 | 300 |
| External dimensions(m) | 3.8x1.2x1.9 | 5.8x1.7x2 | 7x1.7x2 | 9x1.7x2 |
| Tray quantity | 16 | 24 | 48 | 72 |
| Shelf temperature(℃) | -55~120 | -55~120 | -55~120 | -55~120 |
| Shelf medium | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil |
| Prefreeze temperature(℃) | -30~-60 | -30~-60 | -30~-60 | -30~-60 |
| Cold trap temperature(℃) | -50~-80 | -50~-80 | -50~-80 | -50~-80 |
| Vacuum pump | Rotary vane pump | Rotary vane pump | Combined pump set | Combined pump set |
| Working vacuum | ≤130Pa | ≤130Pa | ≤130Pa | ≤130Pa |
| Defrosting mode | Hot water spray | Hot water spray | Hot water spray | Hot water spray |
| Cooling Power(kw) | 9 | 18 | 25 | 34 |
| Heating Power(kw) | 6 | 12 | 24 | 36 |
| Total Power(kw) | 18 | 34 | 56 | 83 |
| Working Temperature | ≤40℃ | ≤40℃ | ≤40℃ | ≤40℃ |
